| ชื่อแบรนด์: | MCREAT |
| เลขรุ่น: | MC-07232 |
| MOQ: | 4000 |
| ราคา: | USD3.5-4/PC |
| เงื่อนไขการจ่ายเงิน: | T/T, L/C, Western Union |
| ความสามารถในการจําหน่าย: | 45000pcs/เดือน |

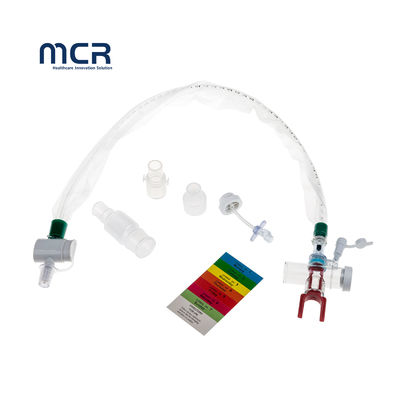

10Fr to 16Fr multi-specification T-connector MDI medication port closed suction catheter 600mm dedicated endotracheal intubation
The closed suction catheter (T-connector) 72-hour automatic flushing system is designed for adult patients requiring mechanical ventilation or tracheostomy care. Its core advantages include:
Anti-cross-infection design : Equipped with an isolation sheath to effectively prevent the spread of pathogens between patients and medical staff.
Continuous ventilation function : No need to disconnect the ventilator during suctioning, maintaining oxygen supply and avoiding fluctuations in the patient's blood oxygen level.
Breakthrough self-cleaning technology : The catheter retracts into a turbulent clean chamber for automatic flushing, improving catheter tip cleanliness by 89% compared to traditional closed systems, significantly reducing the risk of ventilator-associated events (VAE) and pneumonia (VAP).
Multi-Scenario Adaptability : Compatible with both endotracheal tubes and tracheostomy tubes, it's available in four tube diameters (10Fr-16Fr) and two lengths (600mm for endotracheal tubes and 300mm for tracheostomy).
Made of medical-grade polyurethane, it offers both flexibility and durability, ensuring maximum protection for the patient's airway mucosa during operation.
Turbulent cleaning chamber technology : The fluid dynamics design generates high-intensity vortexes, and the cleaning effect is improved by 89% compared to conventional flushing.
Closed suction patent : Fully sealed operation avoids airway exposure and maintains the PEEP (positive end-expiratory pressure) value of the ventilator stable.
Synchronized ventilation structure : The three-way valve design realizes suction and oxygen supply in parallel to ensure the oxygenation index.
Medical polyurethane process : The catheter is specially treated to have both anti-bending and biocompatibility.
Ethylene oxide sterilization : Meets ISO11135 standards, with a sterilization assurance level of 10⁻⁶.

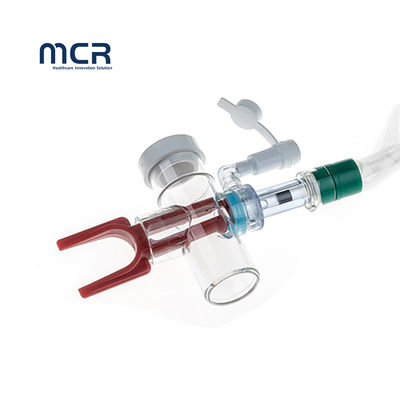

Ergonomic control valve : Thumb-press negative pressure control supports precise suction adjustment.
|
Product Code |
Size |
Colour Code |
Tube OD (mm) |
Length of Tube (mm) |
|
MC-07230 |
Adult/72H/Endotracheal |
Black |
10Fr(3.35mm) |
600mm |
|
MC-07231 |
Adult/72H/Endotracheal |
White |
12Fr(4.05mm) |
600mm |
|
MC-07232 |
Adult/72H/Endotracheal |
Green |
14Fr(4.75mm) |
600mm |
|
MC-07233 |
Adult/72H/Endotracheal |
Orange |
16Fr(5.45mm) |
600mm |
|
|
|
|
|
|
|
MC-07220 |
Adult/72H/Tracheostomy |
Black |
10Fr(3.35mm) |
300mm |
|
MC-07221 |
Adult/72H/Tracheostomy |
White |
12Fr(4.05mm) |
300mm |
|
MC-07222 |
Adult/72H/Tracheostomy |
Green |
14Fr(4.75mm) |
300mm |
|
MC-07223 |
Adult/72H/Tracheostomy |
Orange |
16Fr(5.45mm) |
300mm |
Q: How to choose between endotracheal tube type and stoma type?
A: For endotracheal intubation patients, use the 600mm length (MC-07230 series), and for tracheostomy patients, use the 300mm length (MC-07220 series).
Q: Can the catheter be reused?
A: Reuse is strictly prohibited! Ethylene oxide residue after a single use can harm the patient, and the protective sheath cannot be sterilized.
Q: Is it suitable for children?
A: This series is for adults only. For children's models, please check the MC -02446~ MC -02449 series.
Q: How to choose the flushing solution?
A: Sterile saline must be used. Hypotonic solutions such as water for injection are strictly prohibited.
Q: What is the minimum order quantity?
A: The MOQ for standard models is 4,000 pieces, and the MOQ for customized models is 5,000 pieces.
